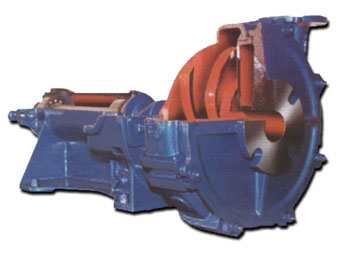

The versatile Eagle EJC slurry pump is designed and engineered to pump abrasive and corrosive slurries. Features such as replaceable wear liner, shaft sleeve, extra thick casing walls and the heavy duty bearing frame assembly make the Eagle EJC a robust slurry pump.

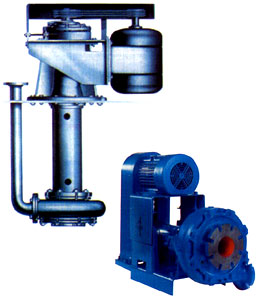

Also available: Vertical cantilever arrangement (EVJC).

Various materials of construction: 28% Chrome Iron, Cast Iron, Stainless Steel and CD4MCU.

Available in eight sizes up to 250mm discharge.

SERVICES

Back Fill
Clay and Sand Slurries
Wet Scrubber Systems
Dirty Water
Waste Sludge
70% Kaolin Clay
Fracing Slurries
Carbon Slurry
Paper Mill Wastes and Liquors
Lime Mud
Precipitated CaCo3

Capacities to 1600 m3/h
Heads to 73 meters
Temperature to 120 C
Pressure to 1034 kPa
Spherical Solids to 57 m/m

DESIGN FEATURES
Suction Cover Liner
Replaceable part takes all wear on suction side of casing.

Impeller
Best design for slurry services/proven by wear testing and field experience.
Back pump-out vanes reduce stuffing box pressure, keep solids out of stuffing box.

Discharge Nozzle
May be rotated in field to any of eight positions.

Casing
Extra thick wall sections for extended wear life, reduced maintenance.
Dual volute design where necessary to reduce radial loads.

Shaft Sleeve
Hook-type design with gasket for shaft protection

Bearings
Radial and thrust bearings are sized for 3-year life (25 000 hours). Grease or oil lubrication.

Dynamic Seal
Expeller option for absolute dry box sealing. No outside flush required.

External Impeller Adjustment
Maintains maximum efficiency by simple adjustment.

Heavy Duty Shaft
Large diameters to handle high loads, reduce shaft detection.

Mechanical Seal
A wide range of mechanical seals are available for sealing flexibility.
Optional TaperBore™ seal chamber provides increased seal life.
