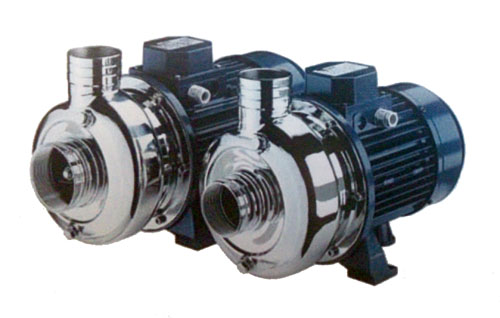

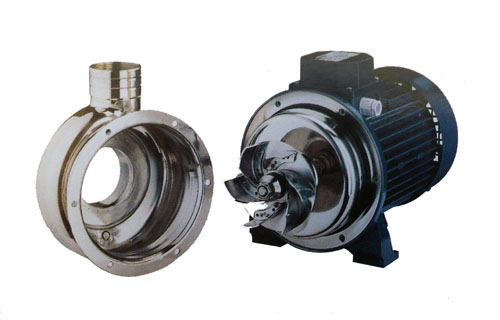

The advanced stamped technology is applied now also in the new OPEN IMPELLER centrifugal pumps having the volute casing as integral part of the pump body. The DWO are pumps extremely versatile: the particular costruction of impeller allows to handle liquids with floating solids; in this case the suitable mechanical seal must be used. Moreover, the special feature at inlet and outlet allows to fit the pumps both to threaded pipes or to flexible pipes.

USES

• Washing of vegetables, meats, fishes.
• Washing and finishing of tins, cables, etc.
• Washing of bottles, jars, cases, etc.
• Industrial dish-washers.
• Painting cisterns cabins.
• Flow irrigation.
• All applications requesting to move charged liquids, including cases when small solids are floating.
• Swimming pool.

MATERIALS

• Pump casing, mechanical seal, back cover and impeller made of stainless steel AISI304.
• Pump shaft made of stainless steel AISI 304
• Std Mechanical seal: ceramic/carbon (siliconcarbide/silicon carbide "HS" version).

PUMP

Delivery from 6 to 66 m'/h.
Max head: 19m.
Max solids passage: 19 mm diam.
Max working pressure: 8 bar.
Max temperature of liquid: 80°C
Outlet: 2" female for threaded pipes, 63 mm male for flexible hoses.
Inlet: - DWO 150 and DWO 200
2" female for threaded pipes,
63 mm male for flexible hoses.
- DWO 300 and DWO 400
2.5" for threaded pipes,
80 mm male for flexible hoses.

MOTOR

Induction, 2 poles motor
Insulation class: F
Protection: IP 55
Continuous duty.
Single phase version:
1,1 kW (1,5 HP) 230 V, 50 Hz, 2800 r.p.m.
Permanent split capacitor
Built in overload motor protector with automatic reset
Three phases versions:
230/400 V, 50 Hz, 2800 r.p.m.
Overload protection must be provided by the user.
